Package

3 in 1

LED type

SMD1010(black)

Pixel pitch

P1.5625mm

Density

409800 dots/㎡

Module size

200X150mm

Pixel configuration

1R1G1B

Module density

128*96=13248 dots

Weight of module

0.52kg

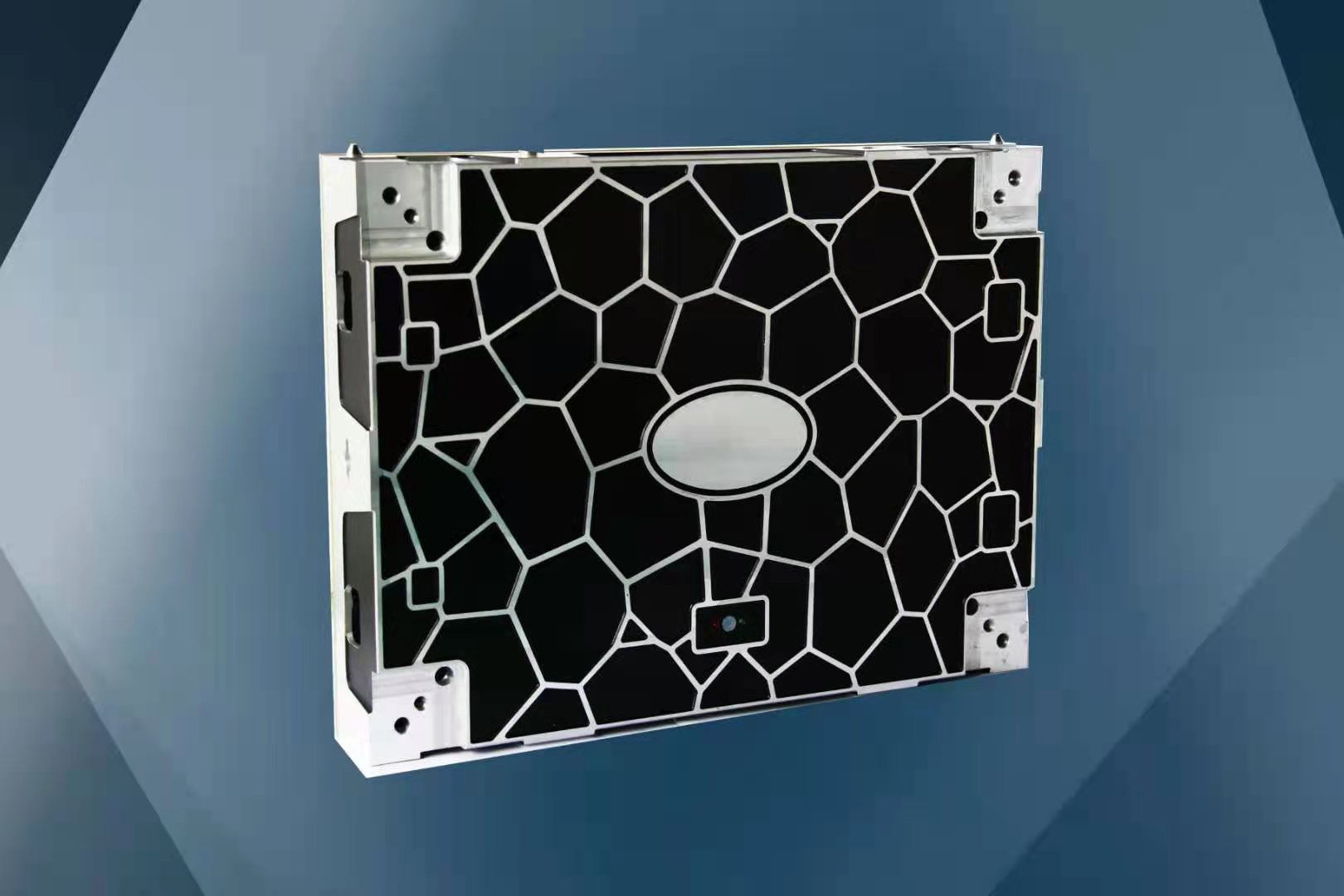

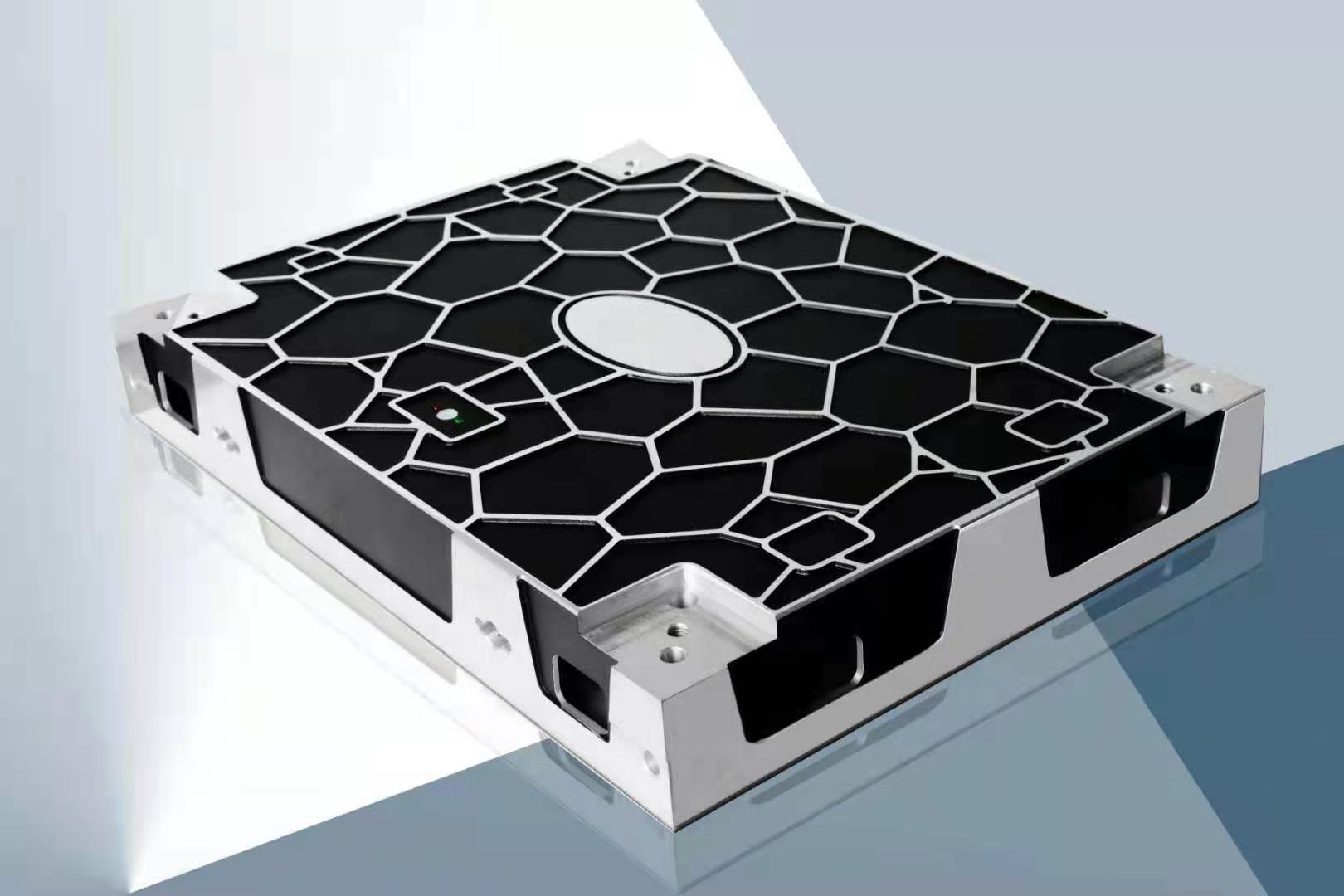

Cabinet size(Die casting-Alu)

400mm*300mm*60mm

Weight of cabinet

5.2kg

Best viewing distance

2m

Best viewing angle

120°

Driving metho

1/32 scanning

Frame frequency

50/60Hz

Brightnes

200-500cd/㎡

Average power consumption

100-280W/㎡

Max power consumption

500W/㎡

Control method

Synchronization

Refresh frequency

2880-3840Hz

IP grade

IP35

Working voltage

AC220V/110V±10%

Working temperature

-10℃-60℃±10%

Working humidity

10％～90％RH

Out-of control point

＜0.0001

MTBF

10000H

Life span

100000H
